Columns
| Column | Type | Size | Nulls | Auto | Default | Children | Parents | Comments | ||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| id | CHAR | 36 | null |
|
|
|||||||
| name | VARCHAR | 255 | √ | null |
|
|
||||||
| date_entered | DATETIME | 19 | √ | null |
|
|
||||||
| date_modified | DATETIME | 19 | √ | null |
|
|
||||||
| modified_user_id | CHAR | 36 | √ | null |
|
|
||||||
| created_by | CHAR | 36 | √ | null |
|
|
||||||
| description | TEXT | 65535 | √ | null |
|
|
||||||
| deleted | BIT | 1 | √ | 0 |
|
|
||||||
| bou_uid | VARCHAR | 36 | √ |
|
|
|||||||
| prj_id | VARCHAR | 36 | √ |
|
|
|||||||
| dia_id | VARCHAR | 36 | √ |
|
|
|||||||
| element_id | VARCHAR | 36 | √ |
|
|
|||||||
| bou_element | VARCHAR | 36 | √ |
|
|
|||||||
| bou_element_type | VARCHAR | 32 | √ |
|
|
|||||||
| bou_x | INT | 10 | √ | 0 |
|
|
||||||
| bou_y | INT | 10 | √ | 0 |
|
|
||||||
| bou_width | INT | 10 | √ | 0 |
|
|
||||||
| bou_height | INT | 10 | √ | 0 |
|
|
||||||
| bou_rel_position | INT | 10 | √ | 0 |
|
|
||||||
| bou_size_identical | INT | 10 | √ | 0 |
|
|
||||||
| bou_container | VARCHAR | 30 | √ |
|
|
|||||||
| sync_key | VARCHAR | 100 | √ | null |
|
|
||||||
| assigned_user_id | CHAR | 36 | √ | null |
|
|
Indexes
| Constraint Name | Type | Sort | Column(s) |
|---|---|---|---|
| PRIMARY | Primary key | Asc | id |
| idx_pmse_bpmn_bound_assigned_del | Performance | Asc/Asc | assigned_user_id + deleted |
| idx_pmse_bpmn_bound_del_d_e | Performance | Asc/Asc/Asc | deleted + date_entered + id |
| idx_pmse_bpmn_bound_del_d_m | Performance | Asc/Asc/Asc | deleted + date_modified + id |
| idx_pmse_bpmn_bound_id_del | Performance | Asc/Asc | id + deleted |
| idx_pmse_bpmn_bound_name_del | Performance | Asc/Asc | name + deleted |
| idx_pmse_bpmn_bound_skey | Must be unique | Asc | sync_key |

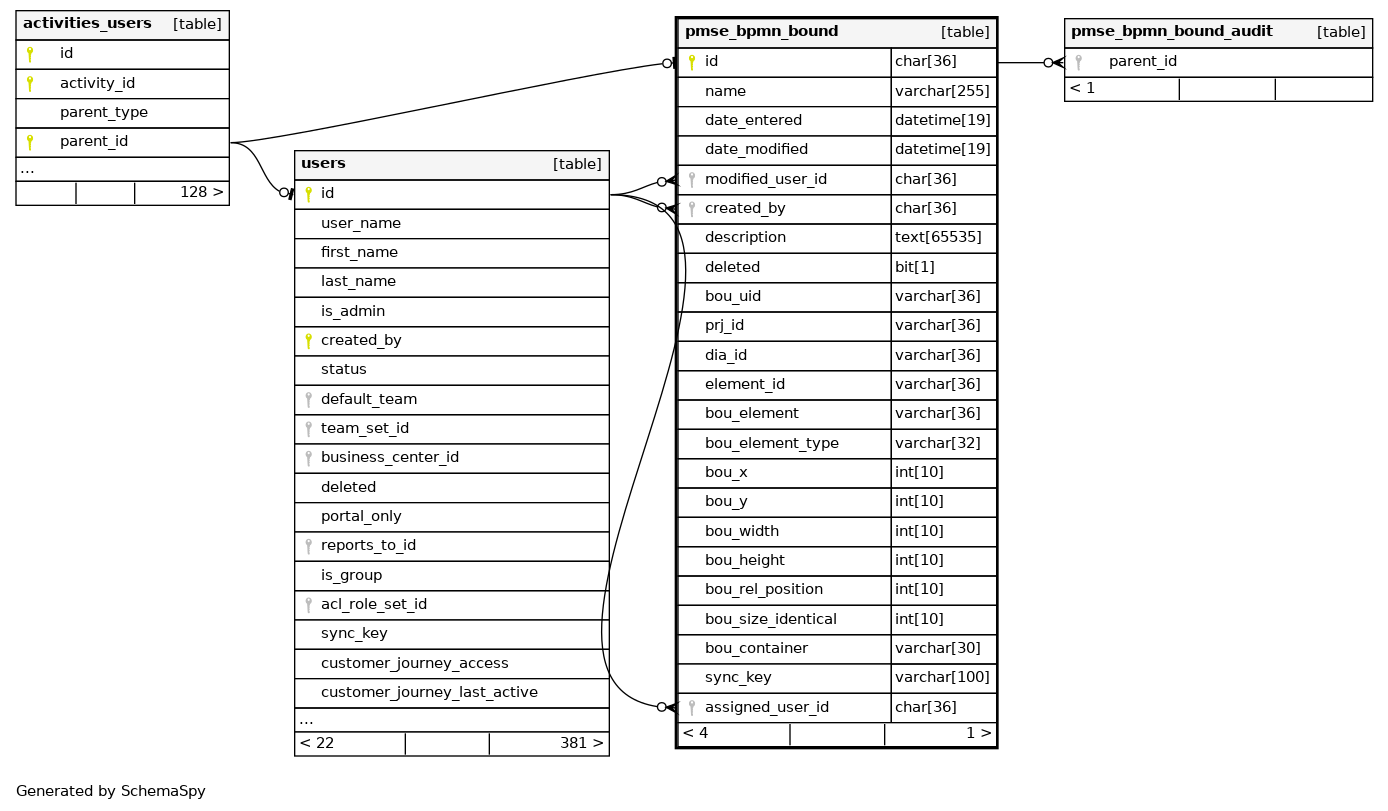

Relationships
